Loadcell Controller
Programmable Loadcell Controller
SS-UNI-0503

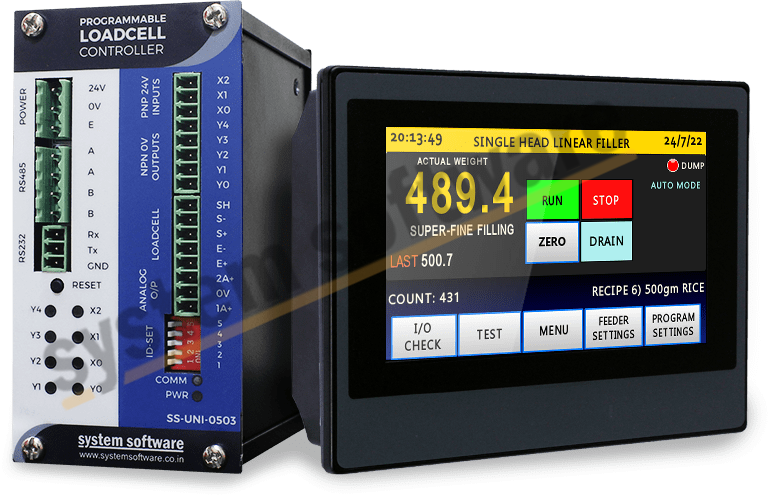

The Loadcell Controller SS-UNI-0503 is designed for loadcell-based automation systems. This product is engineered for accuracy and efficiency to fulfil multiple applications, thereby making it the most suitable choice for industries which demand high accuracy load measurements and have control requirements.
Specifications:
| Parameter | Details |
|---|---|
| Operating Voltage | 24VDC, 5W |
| Loadcell Interface | 1 x loadcell interface. (4-wire 350ohm x 4 nos max ) |
| A-D Converter | 24-bit Sigma-Delta AD Converter with settings for:- Programmable Gain, Digital Filter, Usable Counts, Sampling Speed. |
| Digital Outputs | 5 x digital outputs PNP |
| Analog Outputs | 1 x 0-10Vdc analog output of 10-bit resolution |
| Digital Inputs | 3 x digital inputs PNP |
| Pulse Train Output | 1 x Pulse Train Output for motor control |
| Communication | 1 x RS232, 1 x RS485 Modbus RTU |
| Interface | Interface with standard HMI over RS-485 Modbus RTU protocol |

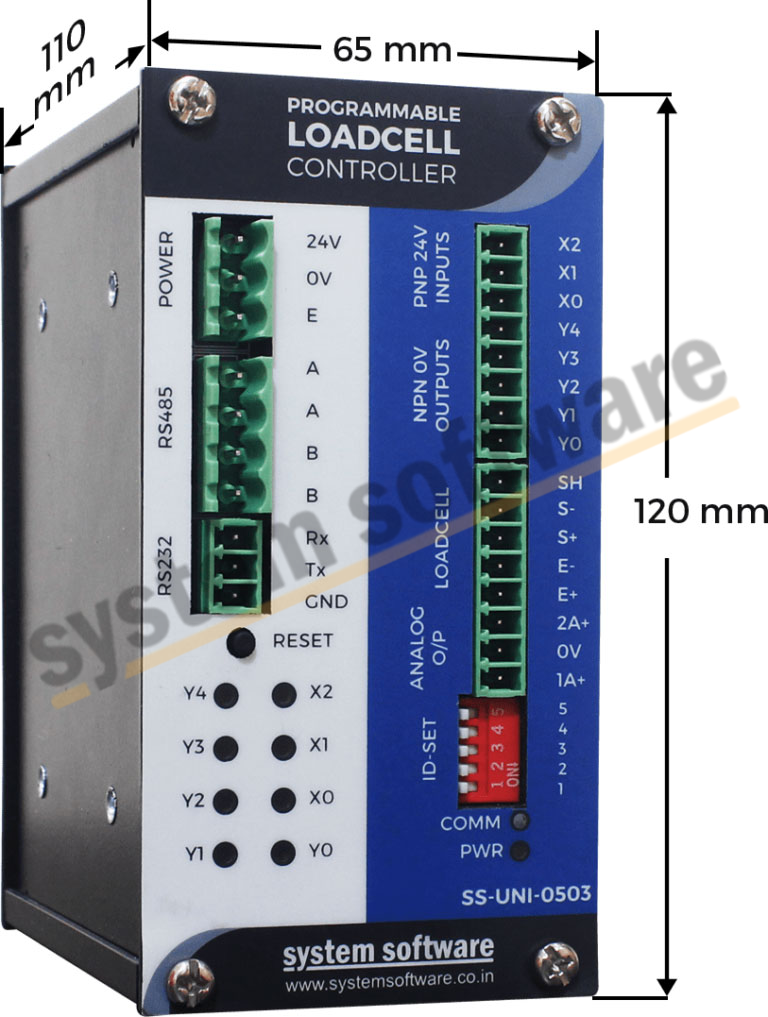

| Size | 120mm x 65mm x 110mm ( L x W x D ) |
| Mounting | 35mm DIN rail mount |
| Data | USB datalogger facility via HMI |
Key Features:
- Multi-Application Support: One controller supports various loadcell-based automation tasks.
- HMI Integration: An intuitive user-friendly interface for easy operation and control.
- Network Capability: Multiple controllers can be linked up for unified system operation.
- High Accuracy: Provides accurate load measurement and control for high-performance applications.
- Robust Design: Designed to perform well over a long period in industrial settings.
Applications:

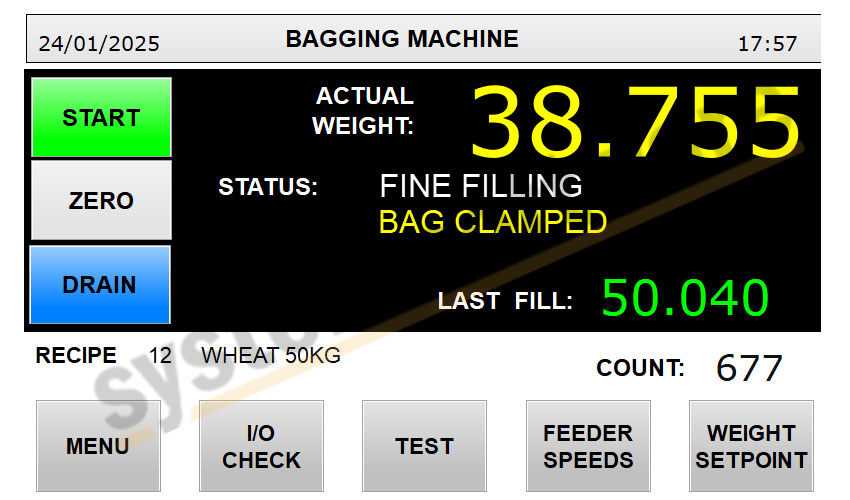

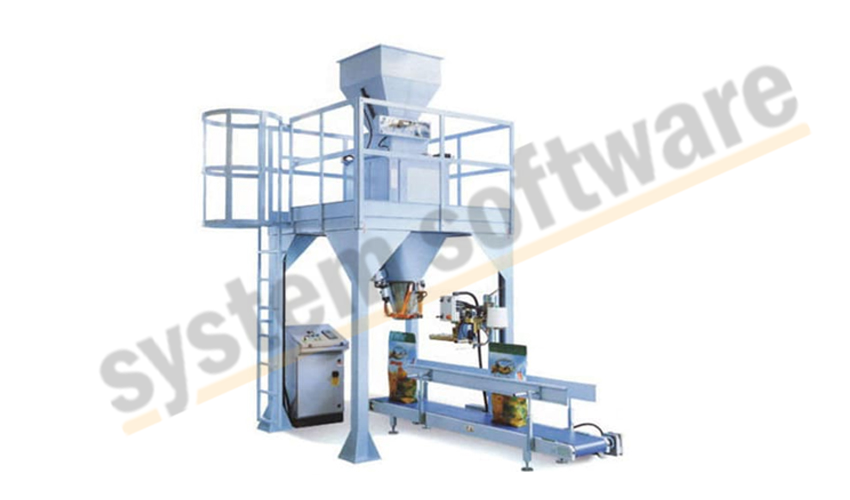

Bagging Machine Controller:
Input Functions
- Start Trigger
- Emergency Stop
- Air-Pressure Healthy
Output Functions
- Coarse Gate
- Fine Gate
- Bag Clamp
- Bucket Drain
- Feeder Enable
- Batch Ready
Recipes
- 50 Programmable Recipes

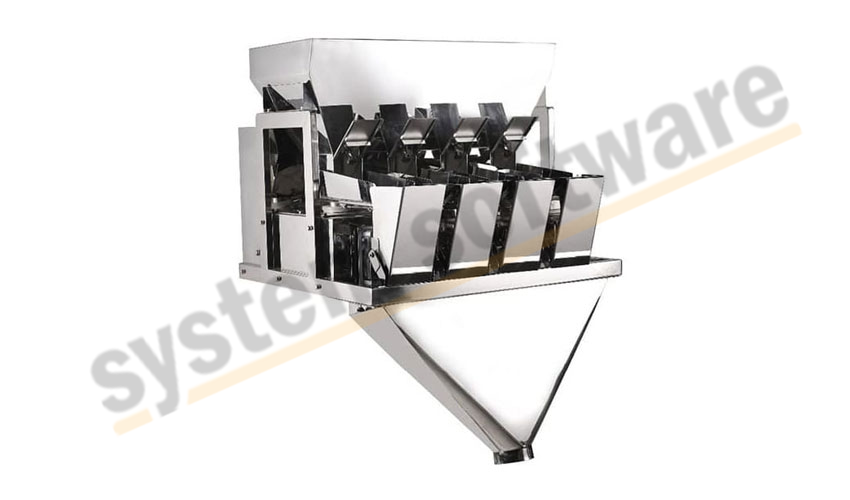

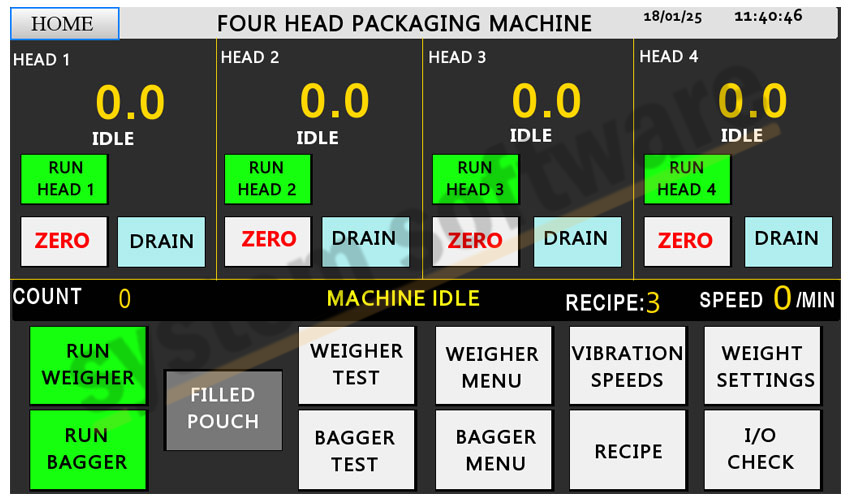

Linear Weigher Controllers:
Output Functions
- Vibrator Feeder Speed-Coarse
- Fine
- Super-Fine
- Bucket Drain
- Batch Ready
Input Functions
- Start Trigger
- Bucket Homing Sensor
Recipes
- 50 Programmable Recipes

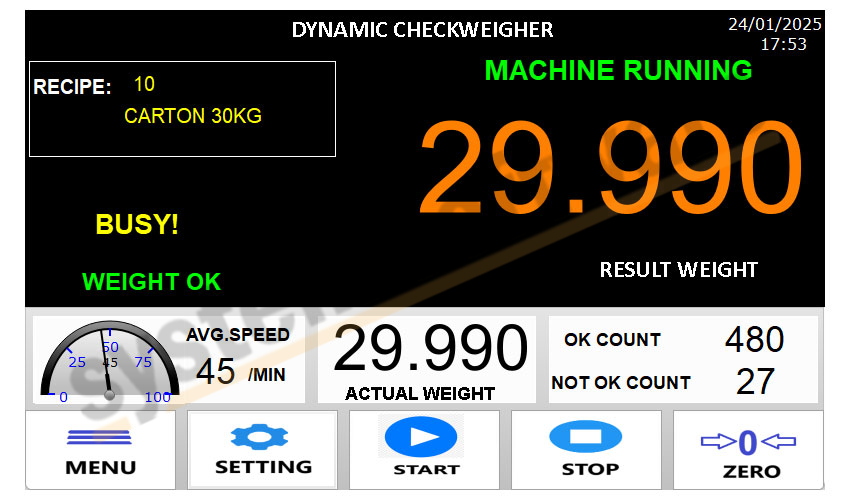

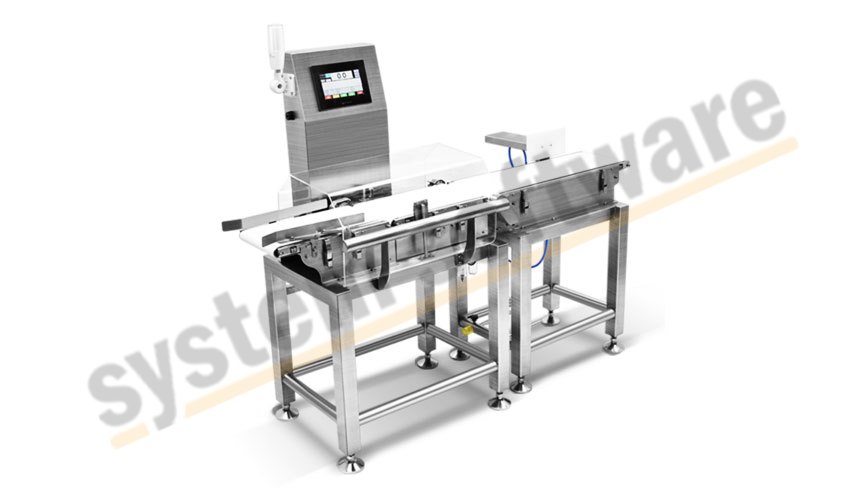

Dynamic Check-Weigher Controllers:
Output Functions
- Belt ON/OFF
- Weight-OK
- Weight-Under
- Weight-Over
- Rejection Pusher
Input Functions
- Start Sensor
- End Sensor
- Emergency Stop
Recipes
- 50 programmable recipes

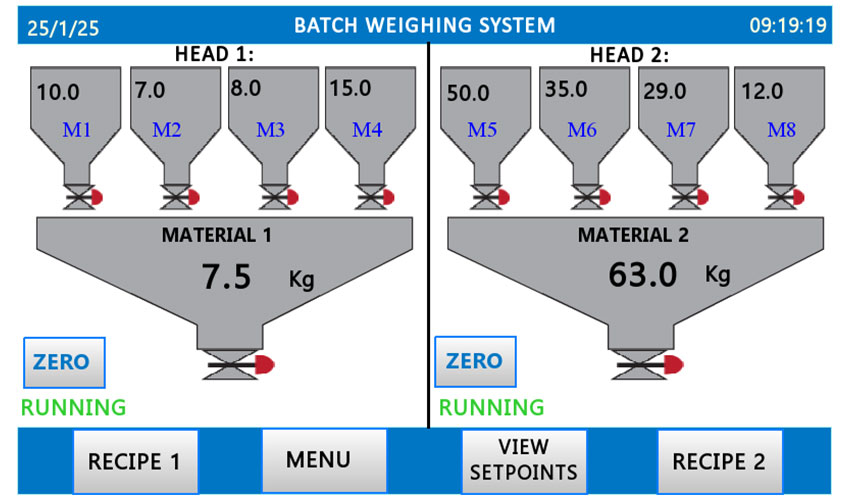

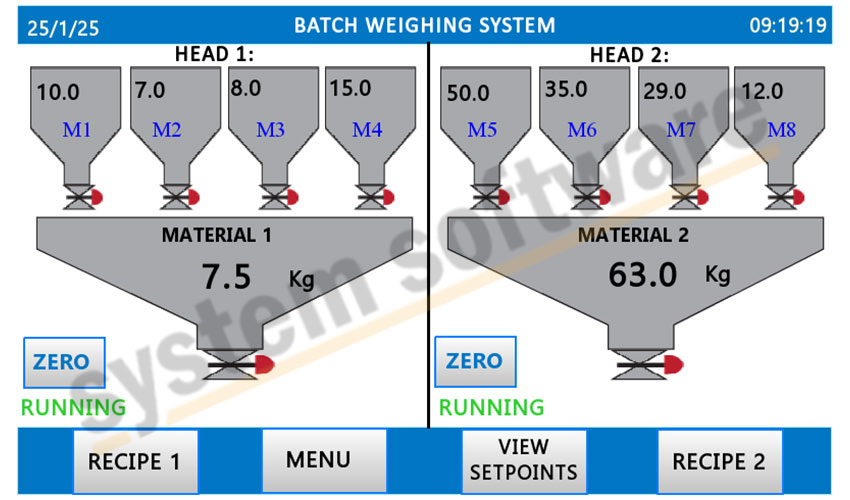

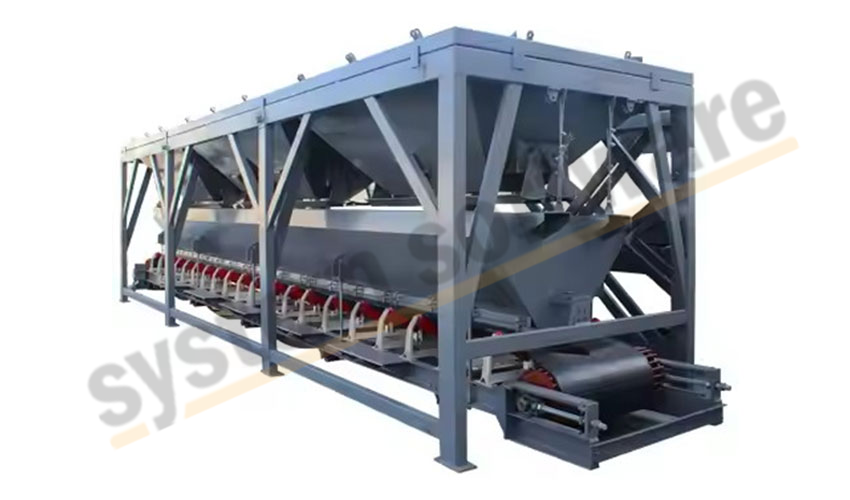

Concrete Batch Mixing Machines:
Output Functions
- Material-1 valve
- Material-2 valve
- Material-3 valve
- Material-4 valve
- Drain valve
Input Functions
- Start Input
- Pause Input
- Emergency Stop
Recipes
- 50 Programmable Recipes
Be it material handling, weighing systems, or force measurement, the Loadcell Controller SS-UNI-0503 provides reliable performance, scalability, and ease of integration. It is the perfect solution for enhancing operational efficiency in loadcell-based systems.
