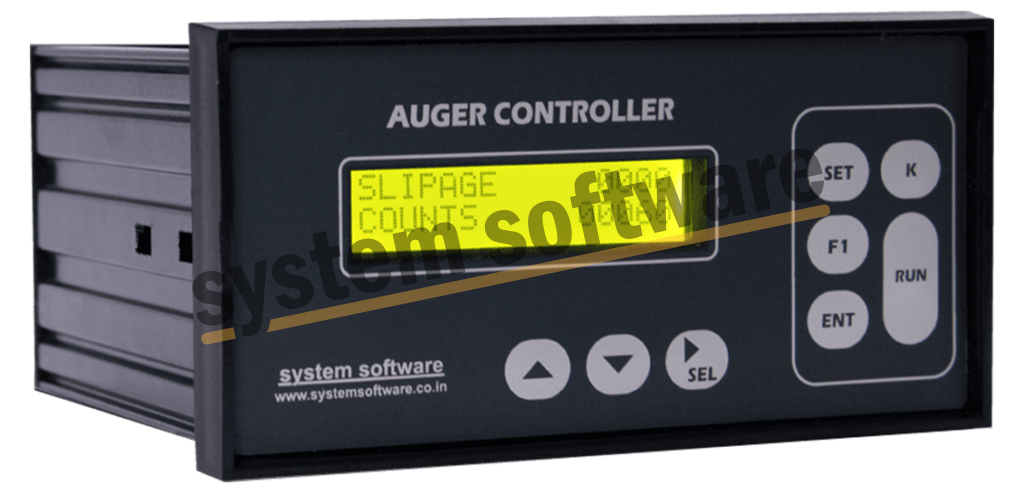

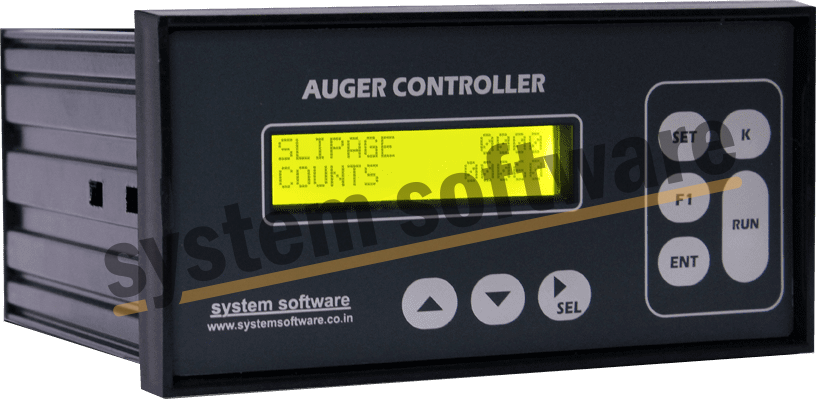

Auger Controller

Clutch-Brake Auger Controller

SS-AUG-01

Auger Controller is a simple to operate digital device manufactured that controls the operation of Auger filling Machines. This controller can be installed in a small panel housing and can be operated with a foot-switch or synced with an external PLC.

Download Brochure
Send Your Enquiry Now

Specifications:

ParameterDetails
Operating Voltage24VDC, 3W
Digital OutputsAuger Clutch Auger Brake
Digital InputsStart Pulse

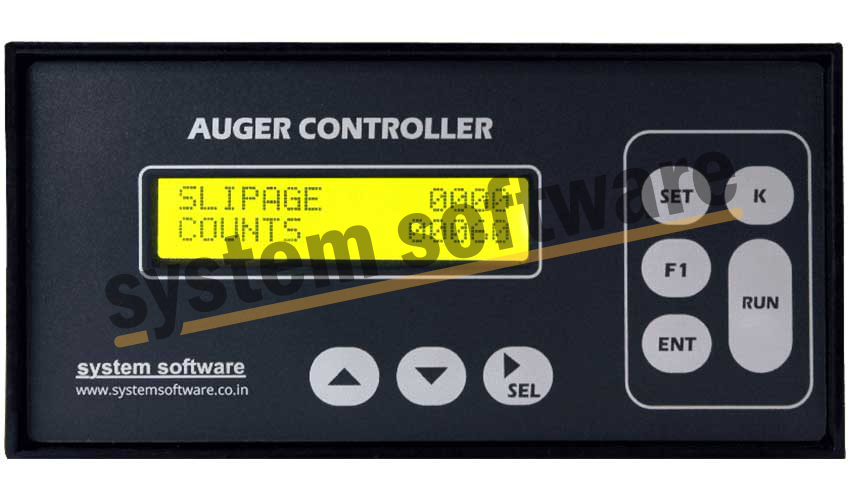

Display16×2 character LCD
Keyboard8-Tactile keys for multifunction use
Size144mm x 73mm x 100mm( L x W x D )
MountingPanel mount

Key Features:

  • Microcontroller based control: Programmable settable features and logic.
  • Simple Interface: LCD and keypad based easy to use interface.
  • Control Methods: Time based / encoder based control.
  • Robust Design: Designed to perform well over a long period in industrial settings.

Applications:

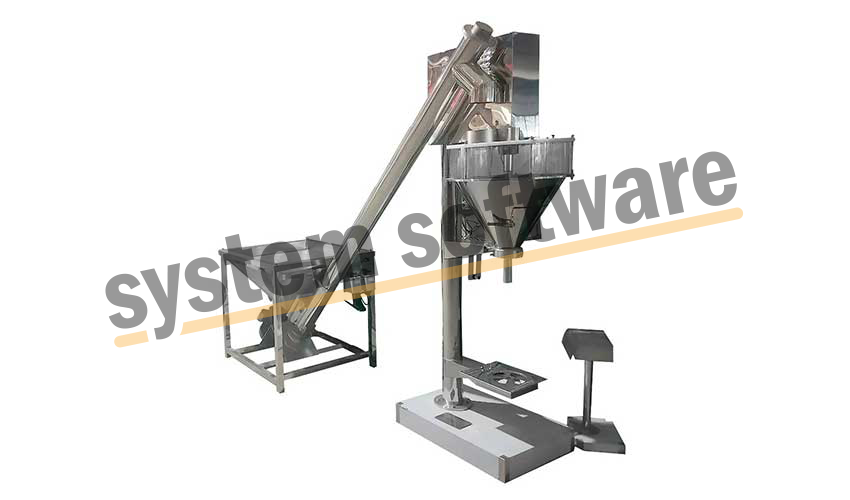

Semi Auger Manual Auger Fillers:
Input Functions
  • Start Pulse
  • Encoder / Fork Sensor for Pulse Counting
Output Functions
  • Auger Clutch
  • Auger Brake
Parameters
  • Auger Start Delay
  • Auger On-Time / Auger Pulse Count
  • Manual Mode / Auto Timer Mode

FAQs:

Auger Controller (SS-AUG-01):
What is an auger controller used for in filling machines?

An auger controller is used to control the operation of auger-based filling machines, ensuring
precise dispensing of powders and granular materials through controlled screw rotation.

How does the SS-AUG-01 control the auger filling process?

The controller manages the auger clutch and brake using time-based or encoder-based
control, allowing accurate control over the quantity of material dispensed.

Can this auger controller work with manual and automatic systems?

Yes, it supports both manual operation (via foot switch) and automatic operation (via timer or
PLC integration), making it suitable for flexible production setups.

What type of materials can be handled using an auger controller?

It is ideal for powders and fine granular materials such as flour, spices, chemicals, and other
bulk solids used in packaging and processing industries.

Why is clutch-brake control important in auger filling machines?

Clutch-brake control ensures precise start and stop of the auger screw, minimizing
overfilling, improving accuracy, and maintaining consistent product weight.

How to connect encoder to this controller?

An optical encoder or a slot sensor can be interfaced to this controller using just 3-wires of
supply, ground and signal. The controller will count the number of pulses coming from this
sensor when the auger motor rotates
