Linear Vibratory Feeder Amplifier
Programmable Linear Vibratory Feeder Amplifier

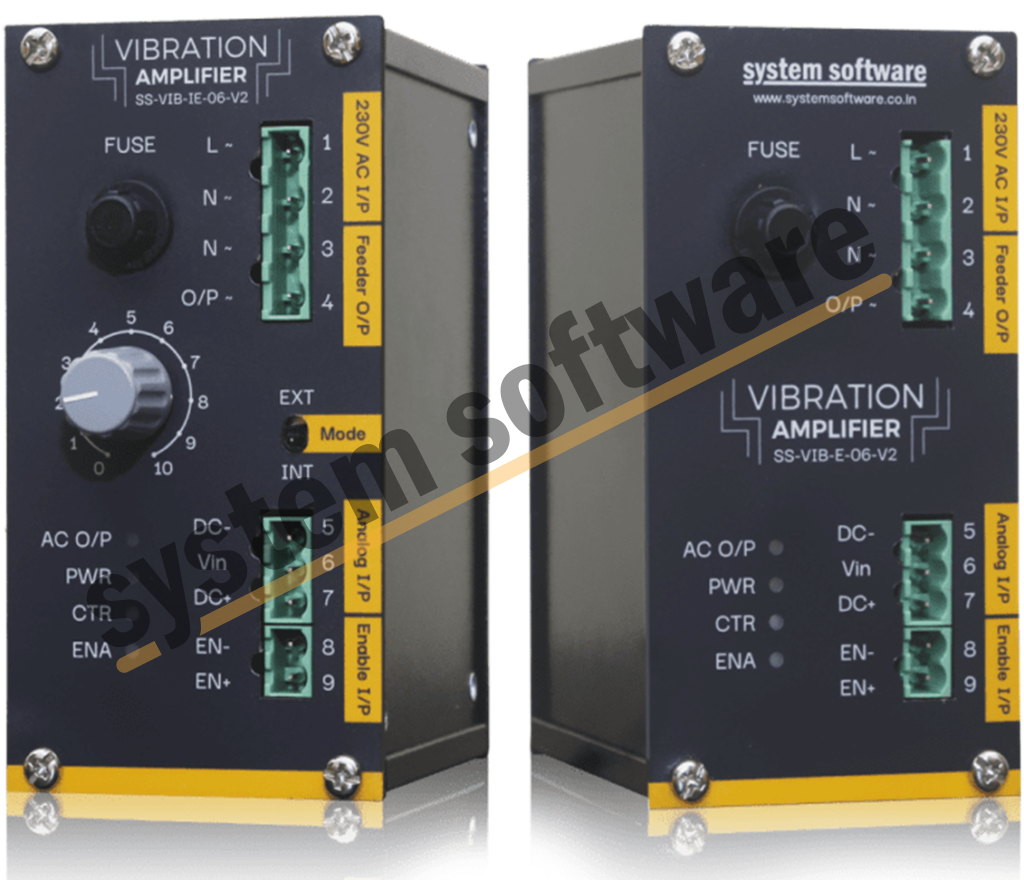

SS-VIB-IE-06-V2 / SS-VIB-E-06-V2
The linear vibratory feeder amplifier by System Software is used to interface linear feeders operating on 230 V AC with PLCs using an analog control interface. The amplifier is microcontroller based to give best results in vibration speed control in linear feeders. This controller can generate coarse, fine, superfine speeds in the vibratory feeders.
Specifications:
| Parameter | Details |
|---|---|
| Operating Voltage | 230VAC |
| Load Capacity | 5Amp |
| Load Control | Half Wave AC voltage control |
| Protection | Glass Fuse 5Amp for protection against short-circuit Varistor 275VAC for protection against over voltage above 270VAC |
| Control Input | 0-10VDC / 4-20mA / External Potentiometer / On-Board Potentiometer |
| Digital Input | 12-24VDC Enable Input with N/O or N/C logic |
| DC Power Output | 12VDC output voltage source for sensor / potentiometer excitation |

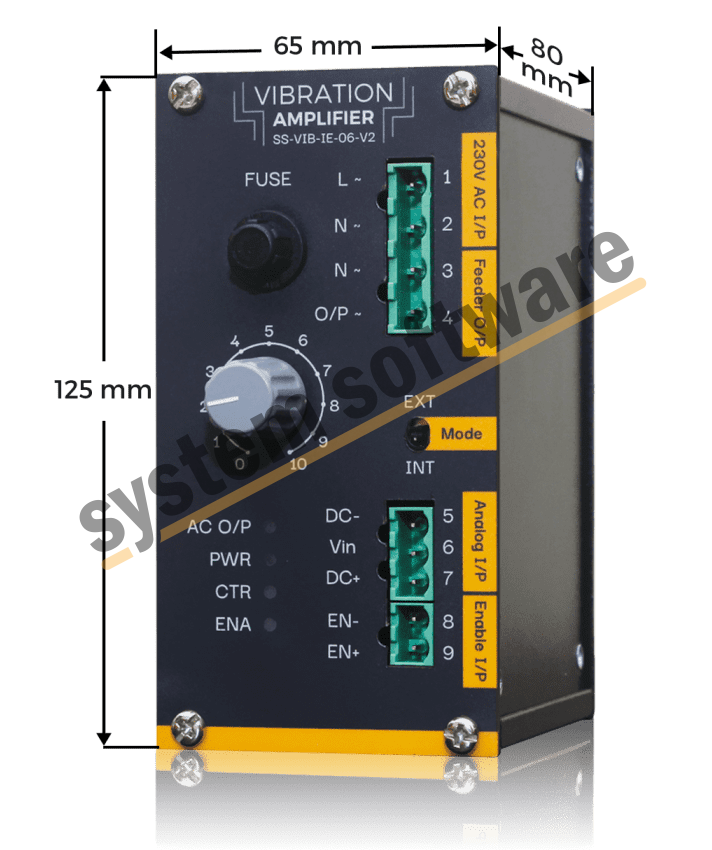

| Size | 125mm x 65mm x 80mm ( L x W x D ) |
| Mounting | DIN Rail Mount |
Key Features:
- Microcontroller based control: Better control of AC voltage using programmed logic.
- Simple Interface: Easy-to wire and plug the wires using direct terminals.
- Wide Range of control options: Vibration Amplitude can be varied through 0-10V, 4-20mA, potentiometers.
- On-Board Fuse: Easy to replace fuse.
- Robust Design: Designed to perform well over a long period in industrial settings.
Applications:

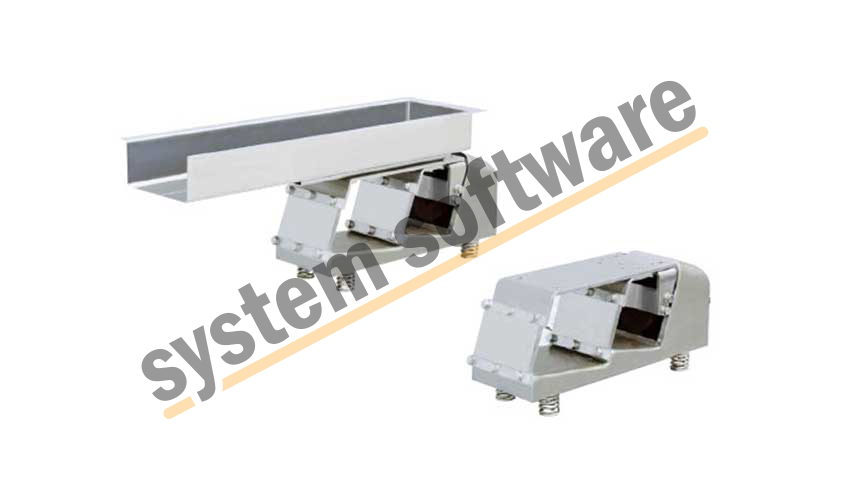

Linear Vibrator Feeder Control:

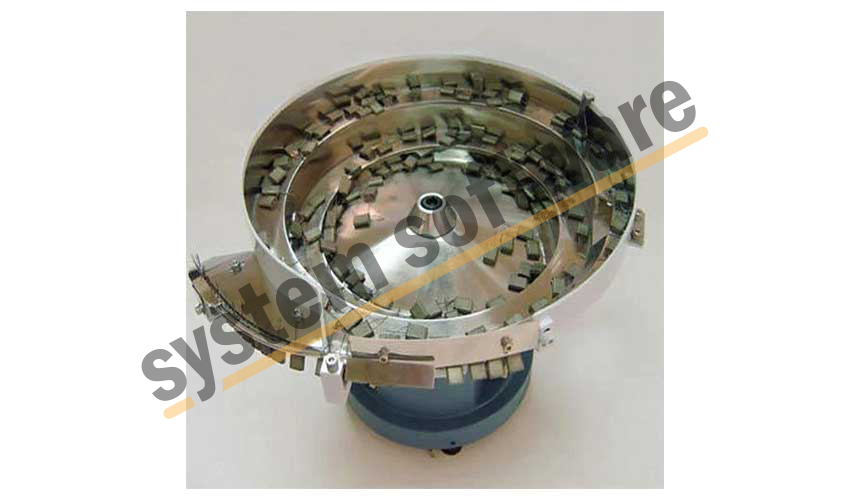

Rotary Bowl Feeder Control:
FAQs:
Linear Vibratory Feeder Amplifier
What is a linear vibratory feeder amplifier used for?
A linear vibratory feeder amplifier is used to control the vibration speed and amplitude of
feeder systems, ensuring smooth and consistent material flow in automation and packaging
processes.
How does this vibratory feeder amplifier control feeder speed?
The amplifier controls feeder speed by regulating AC voltage using microcontroller-based
logic, allowing precise adjustment of vibration intensity for different material requirements.
What input control options are available in this feeder amplifier?
It supports multiple control inputs such as 0–10V DC, 4–20mA, external potentiometer, and
on-board potentiometer, making it flexible for integration with PLCs and automation
systems.
Can this amplifier be used with PLC systems?
Yes, the amplifier is designed to interface with PLCs using analog signals, enabling
automated control of feeder speed in industrial applications.
What types of feeders can be controlled using this amplifier?
It can be used for both linear vibratory feeders and rotary bowl feeders, making it suitable for
a wide range of material handling and feeding applications.
What is the protection available in this controller ?
The vibration controller has a over-current protection via a 6Amp Glass Fuse.
There is a voltage surge suppressor inside the unit. The instrument is having a
metal body which can be grounded to prevent earth-leakage faults
