Linear Vibratory Feeder Amplifier
SS-VIB-IE-06-V2 / SS-VIB-E-06-V2
The linear vibratory feeder amplifier by System Software is used to interface linear feeders operating on 230 V AC with PLCs using an analog control interface. The amplifier is microcontroller based to give best results in vibration speed control in linear feeders. This controller can generate coarse, fine, superfine speeds in the vibratory feeders.
Features
Upto 200 V AC
Output Voltage
3 A / 5 A
Current Capacity
230 V AC, 50 Hz
Operating Voltage

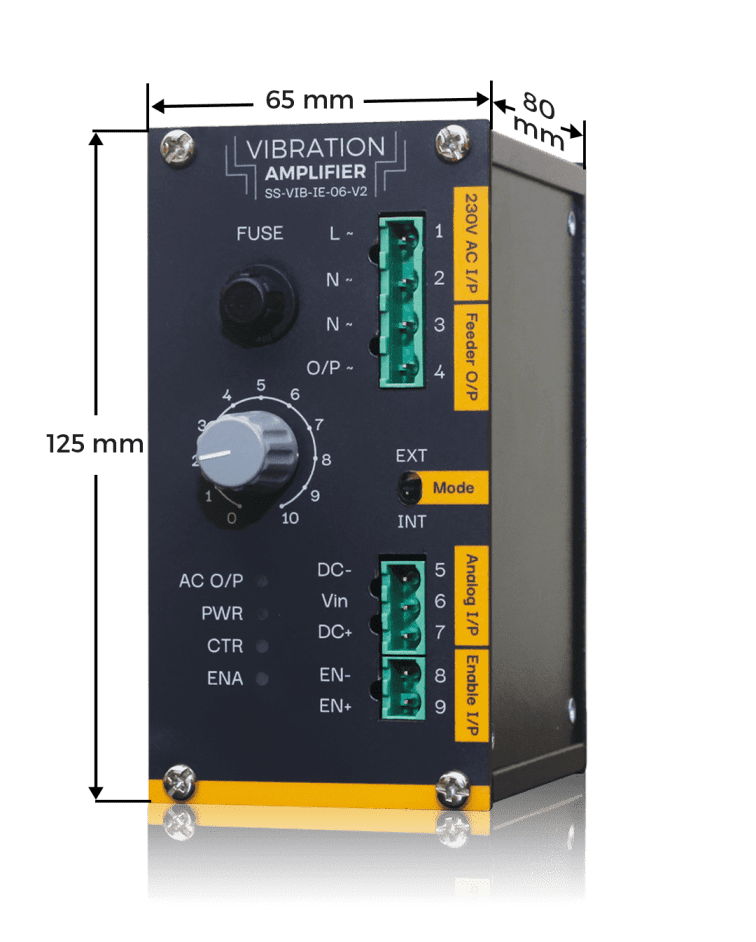

Dimensions
I/O Capabilities
24 V DC
isolated input for enable
0-10 V DC
Control Input via PLC or Potentiometer
