Compact Weigher V4
SS-CWHR-V4
The Compact Weigher V4 is a newly developed controller by System Software with a high performance weight scanning system and improvised logic. The controller is field tested and proven on several linear weigh filler machines and has given superb results considering the accuracy and speed. The prominent feature developed in this controller are its reduced depth (80 mm vs previously 175 mm), high speed weight measurement system, high speed and high current switching outputs.
Features
High Speed
Weight Sampling
PLC Integration
Easily integrate PLC
Pouch Counter
with Weight Totalizer
15 Recipes
Program storage
Compact Size
Light Weight. Saves Space.
24 V DC
Operating Voltage
I/O Capabilities
0
0
Digital inputs | PNP N/O type
0
0
Loadcell interface via high speed ADC
0
0
Relay Outputs | Load Capacity= 3.5 A
Inbuilt surge protection
0
0
Transistor outputs. PNP N/O type.
Load capacity = 0.7 A
0
0
Analog Output
0-10 V DC

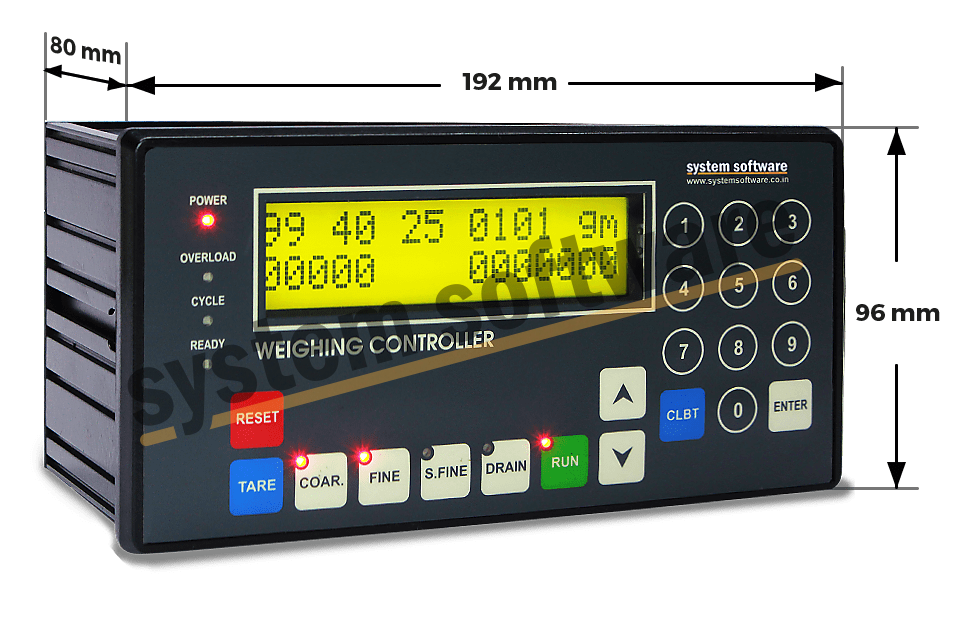

Dimensions
Applications
- Linear weigh fillers
- Gravity weigh fillers
- Bagging machines
- Check weighing
- Liquid weighing fillers
